1 :: Intro

• I have found it increasingly hard to just let occam go
• I feel enthusiasm for Object Orientation..
• ..but also lack of enthusiasm for OO languages
• Therefore, these ideas..

• Is it possible to take safe concurrent processes (of occam)..
• ..and lead them to become safe process-classes?

• The paper introduces
  • "PLUSSING" = textually add new code
  • by "ROLLING" it out  = generating new sources
  • and re-compile..

2 :: Templates?
Implementation inheritance?
Pattern matching?

• The paper suggests a methodology for object orientation
  • Somewhere between C++'s templates
  • Java's (and any other OO language's) implementation inheritance
  • and pattern matching
  • for final code insertion and compilation.
• Occam 2 as a catalyst language turned up to be more suited than I at first thought

3 :: Aim and limitations of paper

• The aim of the paper is to deliver ideas
• The paper tries to "think aloud"
  • It is not part of any ongoing research
  • contains ideas only
  • collected by a software engineer working in industry
  • As such it may be considered "off piste"
    • ..dangerous skiing off the downhill marked and beaten track
• Per definition
  • "object orientation" and
  • CSP/ occam
  • are looked upon as "sound" concepts

4 :: Wegner's taxonomy of object languages

(1) No object facilities - "Classical languages" (*1)

e.g. C and Pascal

(2) Object based -- system uses objects - "Encapsulation languages" (*1)

e.g. Modula-2

(3) Class based -- system uses objects that are defined by classes

e.g. Ada-8x

(4) Inheritance enabled -- system uses classes and inheritance

e.g. C++ without virtual methods

(5) Object-oriented -- system uses classes, inheritance and polymorphic (virtual) methods

e.g. Ada 95, Smalltalk, Java, Modula-3 & the original Simula

• Observe that concurrency is not in the taxonomy
• occam = object-based?
  • However, processes are not easily placed in Wegner's taxonomy

• This paper will try to move occam towards the object-oriented (OO) mindset,
• keep process-thinking along the line
• Inheritance is added, and safe processes are kept

• For this a new term is used: process-class

(*1): Bertrand Meyer, Book OOSC-2

5 :: The new term: process-classes

Processes (as in occam)

Objects are on land

• You are yourself proper, a Homo Sapiens - no super process
• No talking over your head - you see all that is going on
• No talking through you - no super to pass difficult questions to
• No aliasing error
• Thread-safe by birth

Objects (as in OO)

Objects are floating around

• You are an animal first, then Homo Sapiens - super object exists
• Talking over your head: and super class may have own state
• Talking through you - super to pass difficult questions to
• Aliasing errors may occur
• Not thread-safe by birth
• Threads and objects not "orthogonal"

Process-classes (as in this paper)

Occam processes are kept, plus implementation-  and interface inheritance. Static.

Objects are floating, but attached to land

• You are animal first, then Homo Sapiens - "compiled" super process
• Talking through you - super process-class takes difficult questions
• Are processes and process-classes "orthogonal"?

6 :: But is "process-class" possible?

• I will be the first to admit that maybe "process-class" is an impossibility

• Does the concept scale?
• Or is it just some interesting syntax?
• How are the cognitive properties?
  • ..compared to more standard OO?

7 :: Start of rationale
Process "method" interface in occam
is not very useful

PROC SetMethod (CHAN OF SetGet to, VAL INT Data)

  to ! set.NoRe; Data

:

PROC GetMethod (CHAN OF SetGet to, from, INT data)

  SEQ

    to ! get.Re

    from ? CASE get.End; data

:

• May(?) add context switches
• SetMethod and GetMethod are reusable components along another line..
• ..for the SetGet protocol
• Reusability is a context sensitive trait

8 :: Sub-classing through occam
process layering is not practical

• One process outside of another, which takes over some of the "inner process" functionality
• This is "sub-classing" through process layering
• It is not very flexible, since every "function" (tag of the protocol)
  • must be re-implemented
  • and the messages either passed to the super-process and its reply handled,
  • or handled differently locally
• There is no way whereby a super process will take over the messages not handled by the layering process

• In other words, so called implementation inheritance is not directly supported
• ..even if we can program it
• We cannot in occam state that a "house is a building" easily

9 :: Polymorphism through occam
anonymous communication scheme is nice

• In occam we can send the message Bark over a CHANnel
• A process has no idea who receives the message, it could be a Beagle or a Terrier process
• Occam communicates over named channels with anonymous processes
• The dog owner (client) could in fact query Dog which type of Dog it is
  • run-time type inspection
• So, occam does have a system for polymorphism, even if it is not method naming polymorphism

• Plugging and unplugging is more difficult in occam than in standard OO languages
• Maybe this has to do with how occam processes are stopped
• After a process has been stopped, another user could legally try to communicate with it
  • We do not have a way to differentiate between
    normal waiting forever and pathological waiting forever

• None of the problems mentioned above have been solved with the suggested solution

10 :: Concurrent OO and "inheritance anomaly"

• If we wanted to inherit ALT, then a problem "more severe than violation of class encapsulation in sequential language" could fast surface
• Inheritance anomaly = synchronization error in "parallel OO"
• Meseguer solves the problem by rewriting synchronisation parts in such a way that the synchronisation code actually falls out of the formulae
• With no synchronisation, there is no inheritance anomaly either
• Bertrand Meyer (OOSC-2 p981) points out that this is a problem
  • not because of inheritance in itself
  • but because synchronization constraints are defined separately
  • from the routines themselves

• The occam inheritance model we define here will make possible "inheritance" of synchronization
• since the solution is within the present occam process model
• I see no reason why inheritance anomaly should appear

• What I suggest below - is it really inheritance?
• If not, what is it?

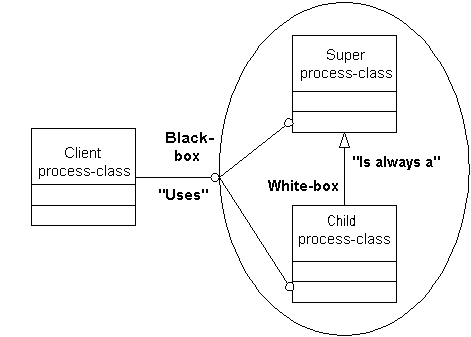

11 :: White-box and black-box reuse

All included:

White-box reuse

• "Implementation inheritance"

Black-box reuse

• "Interface programming"
• Standard occam 2 CHANnel interface contract

Interface inheritance

• Also included

12 :: Start of code examples
The PLUSSING and ROLLING operators # and @

• "PLUSSING" = textually add new code
• by "ROLLING" it out  = generating new sources
• and re-compile..

• I have taken the term PLUSSING from Walt Disney
• "Many of the statues then undergo a 'plussing' process, consisting of detailing the sculptures with special materials."

What we try to do here is the "plussing process" of "PLUSSING" code to an existing process

13 :: Inherit process with plug-in of blocks

PROC Buffer (CHAN OF INT in, out) PLUSSING (TRUE)

  INT data:

  WHILE TRUE

    SEQ

      in ? data

      IF

        data <> 0

          out ! data

        TRUE# -- Plussing operator on TRUE

          SEQ

            in ? data  -- Default is to read a second time..

            out ! data -- .. and send whatever we then get

:

PROC BufferChild() ROLLING Buffer

  TRUE@ -- Rolling operator on corresponding TRUE

    out ! data -- Don't read a second time

:

PROC Buffers (CHAN OF INT in, out)

  CHAN OF INT local:

  PAR

    Buffer      (in, local)

    BufferChild (local, out)

:

14 :: Inherit process with plug-in of synchronisation

PROC ALTer ([]CHAN OF INT in, out) PLUSSING (ALT)

  INT data:

  SEQ

    data := 0

    WHILE TRUE

      ALT

        ALT i = 0 FOR SIZE in

          in[i] ? data

            INT result:

            SEQ

              -- Process something

              out[i] ! result

        ALT#

          FALSE & SKIP

            SKIP

:

PROC ALTerChild (CHAN OF INT inspect.out,

  CHAN OF BOOL inspect) ROLLING ALTer



  BOOL now:

  ALT@

    inspect ? now

      inspect.out ! data

:

CHAN OF INT  a,b,c:

CHAN OF BOOL d:

PAR

  AProducer  (..)

  ALTerChild (a,b,c,d)

  AConsumer  (..)

15 :: Inherit process with plug-in of data

PROC TIMEOUTer2 ([]CHAN OF INT in,

  []CHAN OF INT out) PLUSSING (FALSE&SKIP)



  INT data:

  SEQ

    data := 0

    WHILE TRUE

      ALT

        ALT i = 0 FOR SIZE in

          in[i] ? data

            INT result:

            SEQ

              -- Process

              out[i] ! result

        FALSE# & SKIP# -- For sub process-class

          SKIP

:

PROC TIMEOUTer2Child (CHAN OF INT inspect.out)

  ROLLING TIMEOUTer2



  INITIAL

    TIMER clock: -- Assume PROC..

    INT time:    -- ..global scope

    SEQ

      clock ? time

      time := time PLUS 1000

  FALSE@ & SKIP@

    clock ? AFTER time

      SEQ

        inspect.out ! data

        time := time PLUS 1000

:

16 :: Inherit interface with plug-in of new protocol

PROTOCOL SetGet PLUSSING (CASE)

  CASE#

    set.NoRe; INT -- Tag=0 (input)

    get.Re        -- Tag=1 (input)

    get.End;  INT -- Tag=2 (output)

:

PROTOCOL SetGetChild ROLLING SetGet

  CASE@

    get.Re;   INT -- Tag=1 (input)  Overridden

    mask.Re;  INT -- Tag=3 (input)  New

    mask.End; INT -- Tag=4 (output) New

    kill.NoRe     -- Tag=5 (input)  New

:

17 :: Inherit process with plug-in of new protocol handling

PROC PROTer ([]CHAN OF SetGet in, out) PLUSSING (CASE)

  INT data:

  BOOL running:

  SEQ

    data := 0

    running := TRUE

    WHILE running

      ALT i = 0 FOR SIZE in

        in[i] ? CASE#

          set.NoRe; data

            SKIP

          get.Re

            out[i] ! get.End; data

:

PROC PROTerChild ([]CHAN OF SetGetChild in) ROLLING PROTer

  -- Only input channel redefined

  CASE@

    INT extra:

    get.Re; extra -- Redefined

      out[i] ! get.End; data + extra

    kill.NoRe -- New

      running := FALSE

:

CHAN OF SetGetChild a:

CHAN OF SetGetChild b: -- Could also have been PROTOCOL SetGet

PAR

  AProducer   (..)

  PROTerChild (a,b)

  AConsumer   (..)

18 :: Inherit and inherit again: nesting

PROC PROTerChild ([]CHAN OF SetGetChild in, out) PLUSSING (CASE) ROLLING PROTer

  -- Super is PROTer

  CASE@#

    INT extra:

    get.Re; extra

      out[i] ! get.End; data + extra

    kill.NoRe

      running := FALSE

:

PROC PROTerChildChild() ROLLING PROTerChild

  CASE@

    kill.NoRe

      running := BOOL (data)

:

19 :: PLUSSING # nested inside ROLLING @

• PROTerChild designer has decided that only protocol tag
• .. mask.Re processing may be redefined,
• .. not get.Re code:

PROC PROTerChild ([]CHAN OF SetGetChild in, out) PLUSSING (SEQ) ROLLING PROTer

  -- Super is PROTer

  CASE@

    INT extra:

    get.Re; extra

      out[i] ! get.End; data + extra

    INT mask:

    mask.Re; mask -- New

      SEQ#

        data := data BITAND mask

        out ! mask.End; data

    kill.NoRe

      running := FALSE

:

PROC PROTerChildChild() ROLLING PROTerChild

  SEQ@

    data := data BITOR mask

    out ! mask.End; data

:

20 :: Start of discussion
Dynamic vs. static linking

• Do we have dynamic or static linking?

• OO = methods "bound late"= run-time binding
• Named channels of occam are "connected late"

• PLUSSING and ROLLING of code could be run-time or not

• The" dynamic" concept of standard OO is challenged

21 :: No garbage collection (GC)

[none]

occam 2 is "compile-time" linked = no GC

[?]

• This occam is also "compile-time" linked = no GC
• This occam could be run-time compiled-&-linked = no GC (!?)

22 :: Unnamed blocks - worth anything?

• The PLUSSING block has no name and no explicit interface "parameter list"
• So, is this worth anything?

• I don't think that the lack of an explicit name and interface hinders usefulness.. provided..
  • ..To turn it upside down
    • The suggested scheme is no excuse for bad interface descriptions
  • It would enforce interface descriptions
    • Like a folding editor needs fold crease headings
    • Does PLUSSING need a graphical tool?

23 :: Limitations of scope of this paper

• This paper only discusses inheritance in concurrent PROCesses started with PAR
• How about
  • PROCesses started with SEQ?
    • Occam does not have a taxonomy to differentiate between
      • "concurrent" and
      • "sequential"
      • PROC
  • FUNCTIONs?

24 :: Still no generic buffers

• With the methodology suggested
  • I have found no way to make generic buffers or multiplexers which would handle any PROTOCOL
  • This is a basic feature not present in occam
  • I have missed it (but solved it in a way)

25 :: Dynamic loading?

Some other ideas, again:

• Perhaps it would be possible to send off a process-class
  • as a zipped encrypted source file
  • and have the compiler compile against this "source"
• This could perhaps be done by a Just In Time (JIT) compiler
  • perhaps making it possible to load sub third-party process-classes
  • over the net

• A recent article in Dr.Dobb's Journal states that
  • Internet downloads are dramatically improved sisnce transferring
    source code takes less time than [transferring] compiled executables
    (Müffke, "The Curl Programming Language", Sept2001, p66)

If source files "is it", maybe this PLUSSING scheme just could work?

26 :: Explicit and implicit PLUSSING

• Implicit PLUSSING = no explicit  PLUSSING operator in the super class
• With the simple syntax as occam 2, such a scheme could be possible

• There is no problem in understanding that
  • a glove
    • not a sock
      • fits onto a hand
  • even if we can
    • put a hand
      • inside a sock
  • No foot in glove!

• Put under the regime of a graphical tool implicit PLUSSING could be even more viable

27 :: Closures, an inspiration

• Parameterised block of Ruby and Smalltalk and functional programming languages
• should perhaps be looked upon in this context
• They are highly dynamic concepts
  • where a local block of code may be sent over as a parameter
  • and  then converted back to a block of code
  • and then run within the callee's context

• This paper was much inspired by the concept of closures
• Actually, an article about Ruby in Dr.Dobb's Journal started it all!

28 :: Names of child process-classes

• With occam 2's weak module concept
• it supports only the #USE separate compilation into a "flat namespace"
• (better in occam 3)
• it would be allowed to write:

PROC PROTer() ROLLING PROTer

• Probably not much worth?

29 :: No occam CLASS

• Barrett outlined an occam CLASS concept
• as a means of grouping together different kind of objects like
  • CHANnels
  • variables
  • PROCesses
• A CLASS could be used within any TYPE definition
• No inheritance mechanism was described
• Later, with the occam 3 draft Barrett did not include CLASS
  • unknown for what reason

• This paper has avoided any such CLASS definition
• by piggy-backing on occam 2's PROCess

30 :: In need of a taxonomy

• OO and process-classes
  • Comparing apples and bananas?
• We need a taxonomy of concurrent processes first
  • and for concurrent "OO" processes next

• Is there one?

31 :: Conclusion:
"PLUSSING new code by ROLLING out and compile"

• Making block structures of the
  • super process-class code or
  • super protocol description
  • pluggable
• seems like a scheme which may work to facilitate reuse by way of inheritance

• Since the occam/CSP process model was the basis - and the result
  • there is no process-class which may be used by several thread classes in an unsafe way
• All instances of any process-class live within their own thread
  • with no possibility of conflicts caused by erroneous type of encapsulation

• The result is a
  1. concurrent
  2. aliasing-error free
  3. static (compile-time built)
  4. object-oriented (-like?) language
• so far only sketched to this point - with more answers left than questions posed
